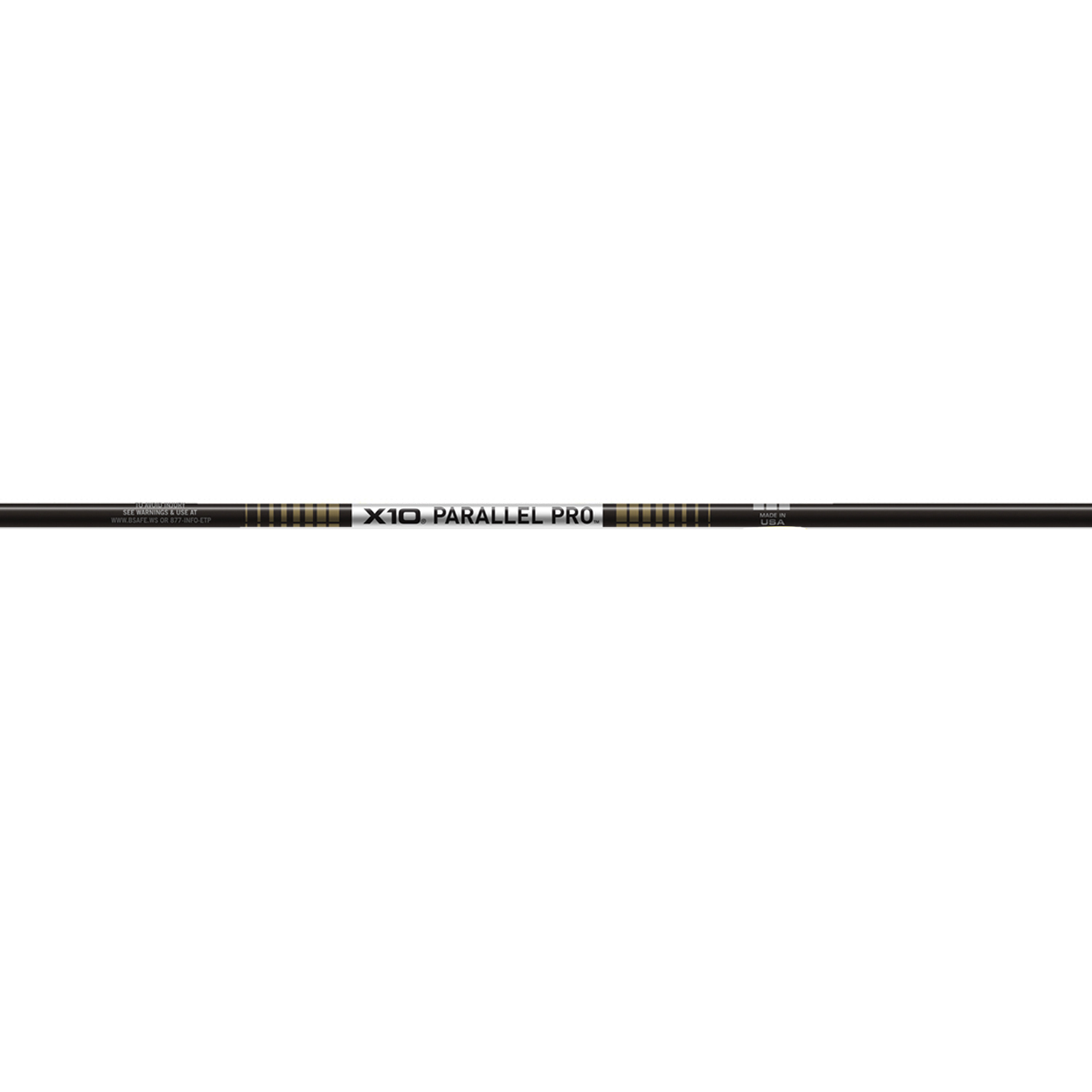

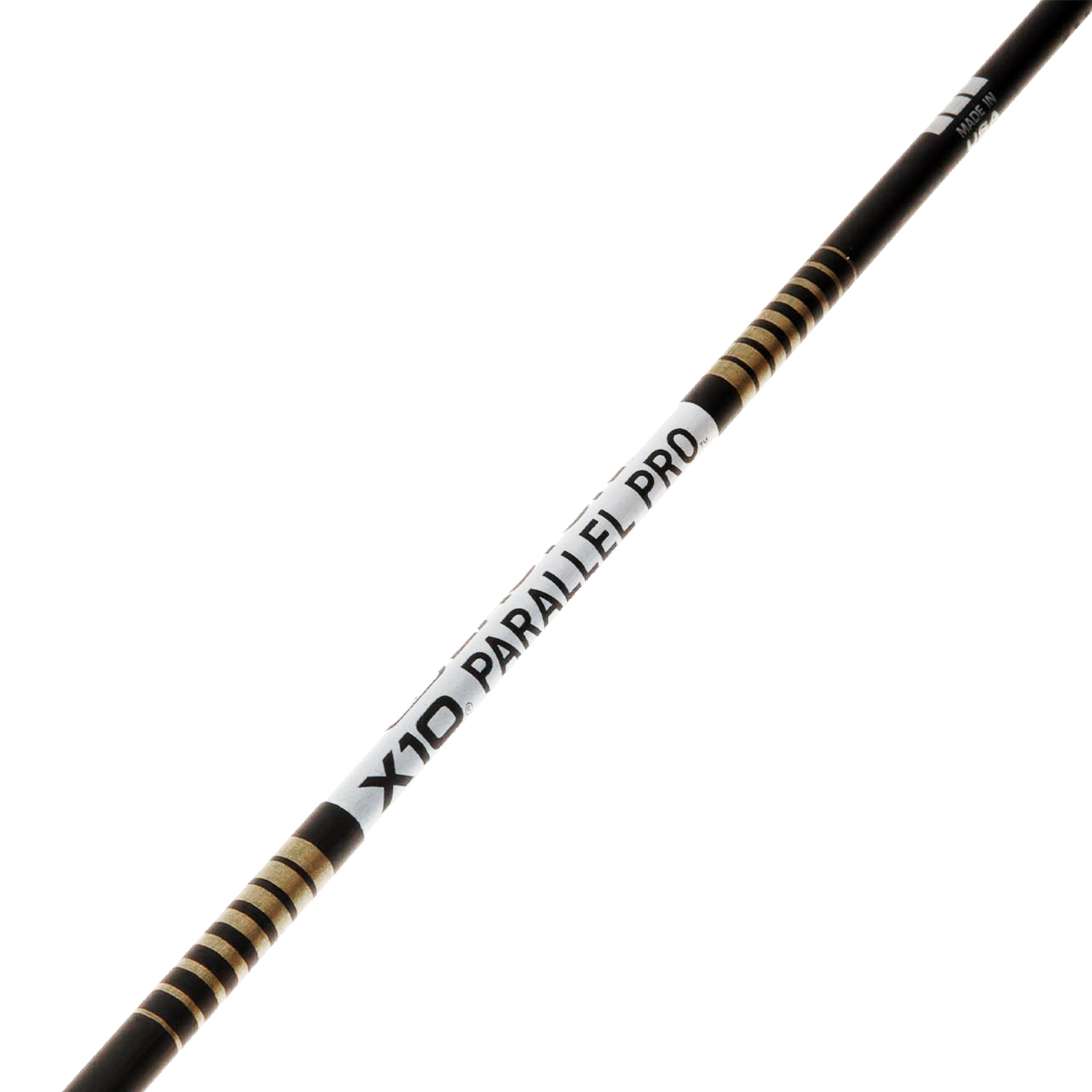

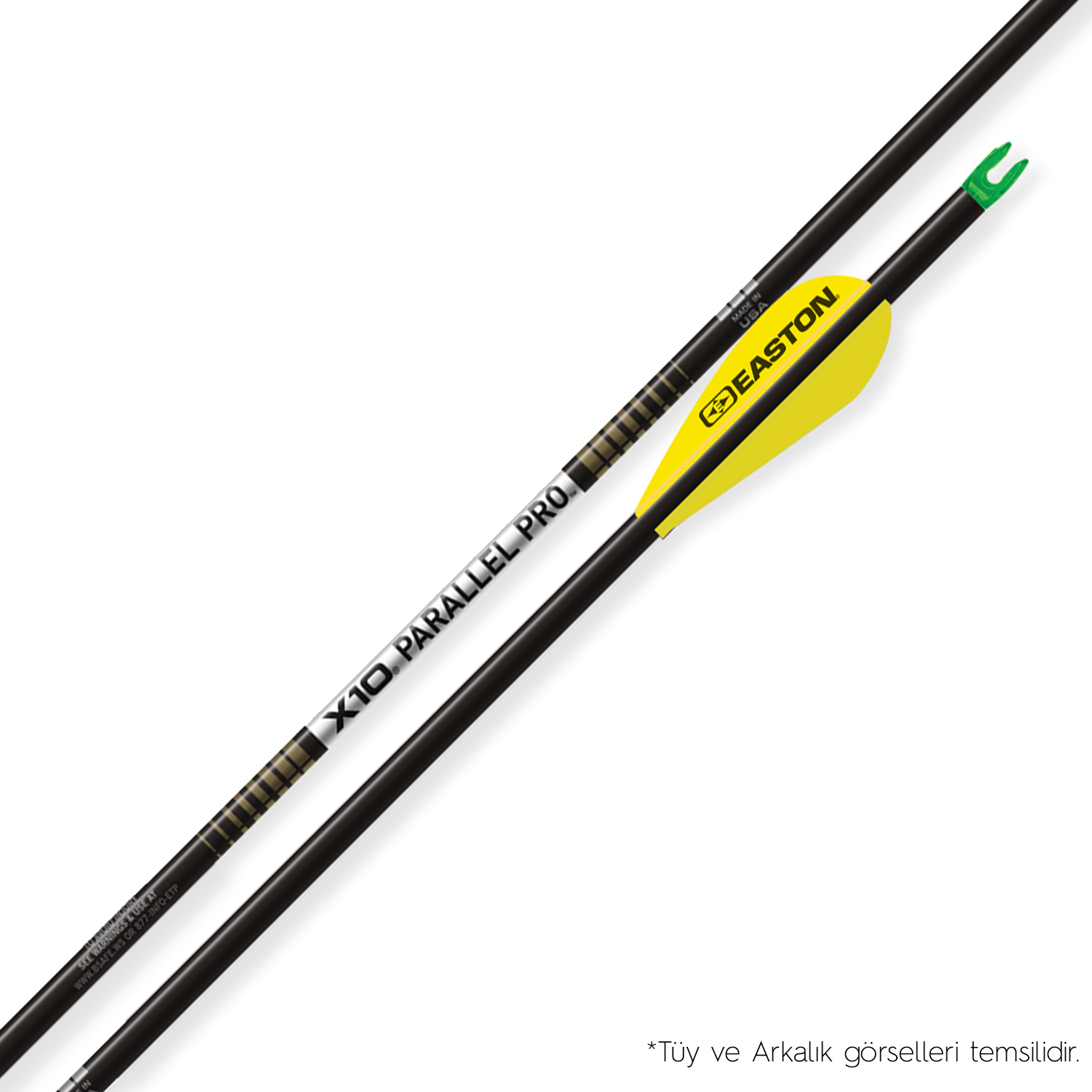

Easton Shaft Carbon X10 Parallel Pro 4mm
The Easton X10 Pro 4mm arrow shaft offers maximum accuracy and consistency with its carbon-aluminum construction. Designed for Olympic and professional archery, it provides high accuracy and stable flight performance.
Easton X10 Pro 4mm Shaft | Carbon-Aluminum | High Precision Arrow Shaft
Explanation
The Easton X10 Pro 4mm Shaft is a high-precision arrow shaft developed for all archery disciplines, from Olympic competitions to training levels. Its carbon-aluminum (A/C) construction offers both lightness and maximum durability. The five-point plane control system ensures superior consistency between shafts.
The 7000 series aluminum-coated carbon structure provides high speed, low deflection, and stable flight performance. It offers professional-level use for Recurve, Compound, and Barebow archery.
Technical Details
- Material:7000 series aluminum-clad carbon (A/C structure)
- Diameter:4 mm
- Accuracy Tolerance:±0.001 inches
- Weight Tolerance:±0.5 grain
- Compatibility:4 mm tip, pin, nock and halfout systems.
- Area of Use: Recurve, Compound, Barebow, Target and Field archery
Package Included
- 12 Easton X10 Pro 4mm arrow shafts
Notes:The product is sold only in packs of 12. Single units are not available.
Key Features
- Professional competition level precision.
- Low deviation and high accuracy rate
- Superior stability thanks to its carbon-aluminum hybrid structure.
- Compatible with all top-level archery disciplines.
Technical Specifications and Dimensions Chart
GPI Shaft O.D.
(Inches) Stock Length
(Inches) 4MM HL
Point Fitment 4MM
Pin Fitment Halfout Size 4MM
Neck Collar 250 10.8 .245 *34 #4 #4 #4 #7 300 9.5 .236 *33.63 #4 #4 #2 #5 340 8.9 .231 *33.63 #4 #4 #1 #4 380 8.3 .227 *32.63 #3 #4 #1 #4 420 7.8 .224 *32.63 #3 #3 NA #4 470 7.3 .220 *32.63 #2 #3 NA #3 520 7.0 .217 *32.63 #2 #2 NA #3 570 6.6 .215 *32.63 #2 #2 NA #2 610 7.3 .218 31 #2 #2 NA #3 660 6.9 .215 30.75 #2 #2 NA #2 710 6.5 .213 30.5 #2 #2 NA #2 810 6.1 .209 30 #1 #2 NA #2 880 5.9 .207 29.5 #1 #2 NA #1 1000 5.5 .204 29 #1 #1 NA #1 1150 5.5 .208 28.5 #1 #1 NA #1
