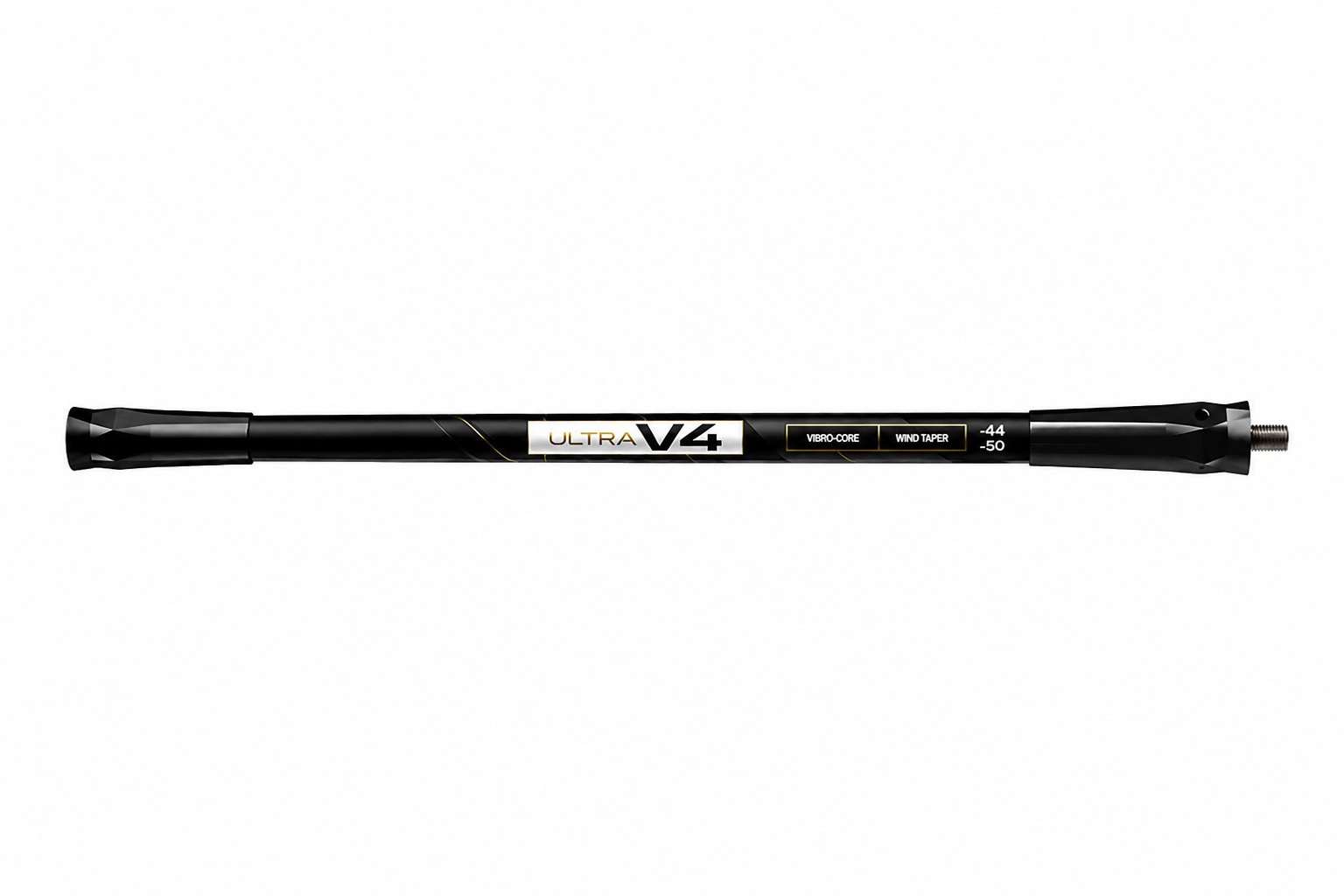

RamRods Ultra 4 Short Stabilizer Tungsten Damping

The RamRods Ultra 4 Short Stabilizer is a short stabilizer with a conical carbon structure, developed for advanced recurve archers. Designed to reduce wind effects, control vibrations, and achieve advanced weight distribution, it combines Wind Taper, C-Spine 594, VIBRO-Core, and Tungsten Damping features.

RamRods Ultra 4 Short Stabilizer Technologies

Wind Taper Conical Carbon Structure

The RamRods Wind Taper design increases rigidity at the base of the stabilizer while creating a thinner profile towards the tip. The side rod diameter tapers from 0.500 inches to 0.440 inches. The ultra-thin diameter profile helps reduce wind impact on the stabilizer, especially in windy conditions.

VIBRO-Core and Tungsten Damping

The RamRods Ultra 4 Short Stabilizer uses a combination of a VIBRO-Core internal damping system and 3 oz tungsten powder located in the distal end section. This structure helps control vibrations while the tungsten mass increases the weight at the end section of the stabilizer.

The additional tungsten mass supports forward weight distribution and FOC (Forward of Center) balance. This helps adjust the weight distribution according to need in high-end recurve stabilizer setups.

RamRods Ultra 4 Short Stabilizer Technical Specifications

• Product Type: Short stabilizer / side rod
• Usage: Advanced recurve archery
• Construction: Conical carbon
• Technology: Wind Taper
• C-Spine: 594
• Damping: VIBRO-Core and Tungsten Damping
• Tungsten Mass: 3 oz tungsten powder at the distal end
• Diameter: 0.500" – 0.440"
• Recommended Weight: 1–15 oz at main stabilizer Thread: 5/16-24 Compatibility: Standard weights and stabilizer accessories End Caps: Aviation-grade aluminum Clamping System: Through-hole and flat clamping slot Key Features Thin Profile to Reduce Wind Resistance The tapered carbon shaft with Wind Taper technology tapers from base to tip, creating a profile designed to provide lower wind resistance. This design is specifically developed for recurve archery setups where wind resistance is important.

  Advanced Weight Distribution

  The 3 oz tungsten mass located at the end of the stabilizer supports advanced weight distribution. Working in conjunction with the VIBRO-Core internal damping system, this structure combines vibration control and weight management in a single stabilizer.

  Compatibility and Use

  The RamRods Ultra 4 Short Stabilizer can be used with standard stabilizer weights and compatible accessories thanks to its 5/16-24 thread. Its short stabilizer design is specifically engineered for use as a side rod in high-end classic spring (recurve) stabilization systems.
